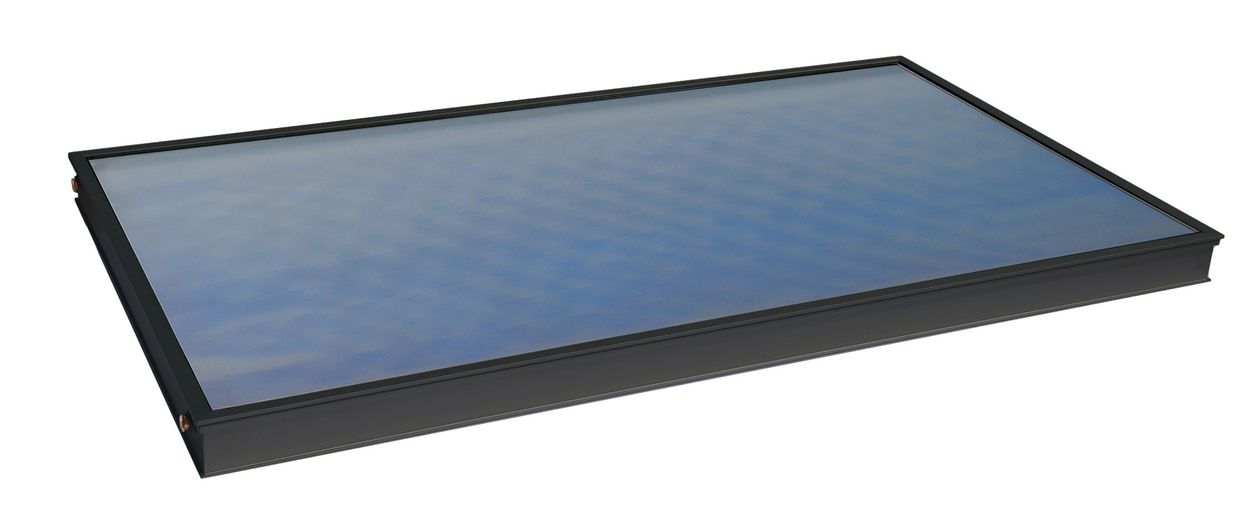

Kollektor L20 MQ AR Web

Benefits:

  • Anti reflective glass for especially high collector yield
  • Environmentally friendly and powerful vacuum coating (95 % absorption, emission 5 %)
  • Laser welded serpentine absorbers
  • Internal 22 mm copper riser and manifold pipe
  • For horizontal installation


SolarKeymark       SolarKeymark





Up to 10% more solar yield!

anti reflective glass solar collectors small 1
  • Reduces reflection considerably
  • Raising the transmission rate
  • Especially effective with the slanted irradiation that often occurs during winter months



Our competent partner installers and planners will be pleased to advise you which solar collector is best suited for your application.
You don't have a Wagner Solar specialist available to you yet? Talk to us!

Technical Data

EURO flat plate collector L20 MQ AR SW
Gross area / aperture area [m²] 2,61 / 2,37 m²
Efficiency [%] 83,8 %
Annual coll. yield acc. to Solar Keymark (annual collector yield, Würzburg, Tm = 50 °C) 1.279 kWh/a
Glazing 3.2 mm solar safety glass with anti-reflective coating; τ = 93,7%
Collector connection Tool-free plug-in connection with stainless steel connection ni
Frame Aluminum, galvanized
Insulation Side, 60 mm back
Mounting options On-roof, free standing setup
Color Anodized black
Dimensions, L x W x H 2.151 x 1.215 x 110 mm
Weight 52,4 kg



Your installer will be happy to advise you on which product is best suited to your application.
