Kollektor L20 MH AR Web

Benefits

  • Anti reflective glass for especially high collector yield
  • Environmentally friendly and powerful vacuum coating (95 % absorption, emission 5 %)
  • Laser welded serpentine absorbers
  • nternal 22 mm copper riser and manifold pipe.
  • For vertical installation, up to 10 collectors in a row



Up to 10% more solar yield!

anti reflective glass solar collectors small 1
  • Reduces reflection considerably
  • Raising the transmission rate
  • Especially effective with the slanted irradiation that often occurs during winter months
euro pruefzeichen keymark




Our competent partner installers and planners will be pleased to advise you which solar collector is best suited for your application.
You don't have a Wagner Solar specialist available to you yet? Talk to us!

Technical Data

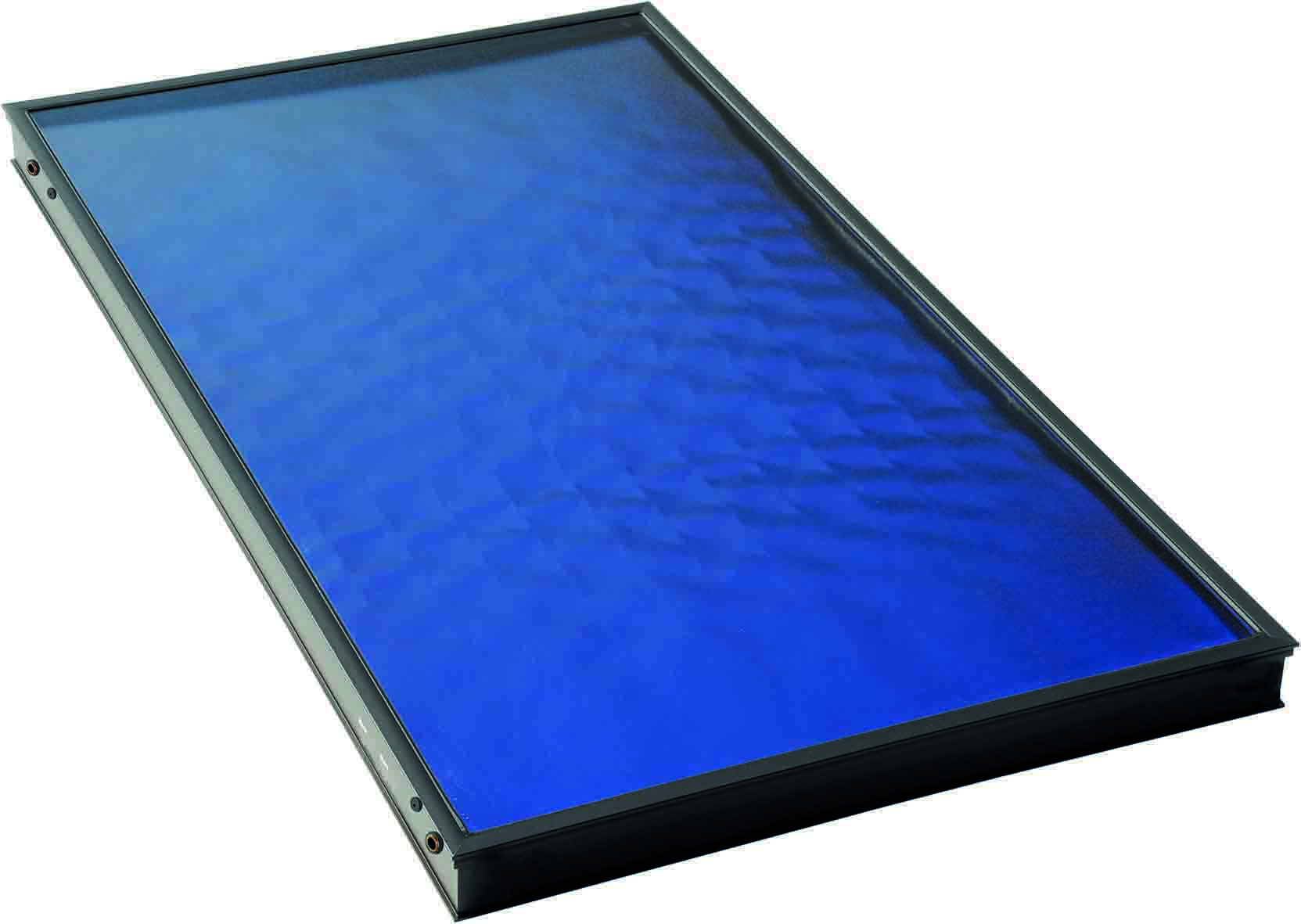

EURO flat plate collector L20 MH AR SW
Gross area / aperture area [m²] 2,61 / 2,36 m²
Kollektor-Wirkungsgrad ηo 83,8 %
Annual coll. yield acc. to Solar Keymark (annual collector yield, Würzburg, Tm = 50 °C) 1.277 kWh/a
Glazing 3.2 mm solar safety glass with anti-reflective coating; τ = 93.7 %
Cover Anodized aluminum with gapless edge and 60 mm rear wall insulation
Collector connection Tool-free plug-in connection with stainless steel connection nipple 22 mm
Mounting options On-roof, free standing setup
Color Anodized black
Dimensions, L x W x H 2.151 x 1.215 x 110 mm
Weight 48,6 kg



Your installer will be happy to advise you on which product is best suited to your application.
